Dobbertin Performance Innovations
- Home of Corvette Interface Suspension Adapters -
100% USA Made - Patent Pending
If you've ever dreamed of upgrading to a C5 / C6 Corvette Independent Rear Suspension, but you don't have –
The expertise to design the system –
The equipment to fabricate the parts –
The money to hire a reputable shop to do the job –
Then you've come to the right place!
Our Corvette Interface Adapter Kit:
Facilitates the installation of a C5 / C6 Corvette IRS into just about anything with four wheels.
Takes the guesswork out of the installation and places every suspension mounting point exactly where it was designed to be.
Allows the entire IRS system to be installed in fraction of the time that would be required to install even a conventional 4-link or ladder-bar system.
Brings the IRS upgrade project well within the realm of many DIY fabricators, and can be accomplished with simple hand tools.
Gives the DIY fabricator the sense of accomplishment that can only be realized through a job well done.
Is a true bolt-on suspension upgrade, once the rear frame is properly positioned in the car.
Here's how it works:
The factory C5 or C6 Corvette lower suspension cradle only has mounting points for the lower control arms, because the upper control arms, shocks and even the cradle itself are bolted directly to the Corvette's original unibody frame...
However, with the addition of our Corvette Interface Adapter Kit...
...the new assembly instantly becomes a complete top to bottom suspension mounting platform with additional mounts for the upper control arms, the shocks, the lower cradle, and even the main frame, built right in - making the entire suspension assembly a breeze to install!

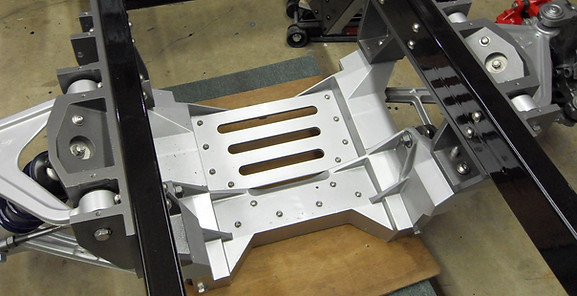

Shown above is the Corvette Interface Adapter Kit mounted on a 6" narrowed C5 Cradle, ready to be installed in our Chevy S-10 project truck.
Above is the final assembly (without the billet aluminum covers)
installed in the S-10, ready for its final wheel alignment.
CHEVY S-10 FOR SALE!
Our Mid Engine S-10 is for sale! Check out the Photos and Specs in the
last couple sections on the site. 515-hp LS3 - 5-Speed Mendeola!
Own a Piece of Hot Rodding History!
Designed and Built by Rick Dobbertin
Builder of Hot Rod Magazine's 1982 Street Machine of the Year - 1965 Nova SS
Builder of Hot Rod Magazine's 1986 Hot Rod of the Year - 1985 Pontiac J-2000
Call Rick at 315-683-0022 for Details
Rear Adapter Kit - ON SALE - $1,275.00 (MSRP - $1,575.00)
Front Adapter Kit - ON SALE - $1,475.00 (MSRP - $1,775.00)
(With Free US-48 Shipping)
IN STOCK ITEMS:
Rear Corvette C5/C6 Suspension Adapter Kits - ON SALE - $1275.00
With FREE US-48 Shipping! (MSRP $1495.00) (See Section 15)
Front Corvette C5/C6 Suspension Adapter Kits - ON SALE - $1475.00
With FREE US-48 Shipping! (MSRP $1695.00) (See Section 16)
Corvette C5 Rear Suspension Lower Cradles - Narrowed 1" to 12" 12" $550.00 - $625.00 Plus UPS Shipping (See Section 17)
Rear Corvette C5 Cradle Brace Kit - $40.00 + USPS Priority Shipping
(Shipped FREE if ordered with a Rear or Front Suspension Adapter Kit) (See Section 18)
Three - 5th Gen Camaro Hammerhead Differential Mounting Uprights $150.00 + USPS Priority Shipping
(Shipped FREE if ordered with a Rear or Front Suspension Adapter Kit) (See Section 19)
C5 Corvette Differential to Driveshaft Adapter - $1650.00 + Shipping
Only One Left In Stock (See Section 20)
How to Place an Order:
Email us at with a list of the items you would like to purchase.
We will then send you an invoice through PayPal.
(If you don't have a PayPal account, you can still use
your personal credit card through PayPal.)
Simply pay the invoice and your order will be placed.
(Doing it this way, the transfer is documented
and secured through PayPal.)
Items will typically ship within four working days.
Feel free to email or call 315-683-0022 with any questions.
Navigating the Site:
Scroll Down for information:
Sections 1-4 - Introduction to the Adapter Kits
Sections 6-10 - Types of Drivetrain Configurations
Sections 11-14 - Technical and Installation Information
Sections 15-20 - Pricing
Section 21 - Manufacturer's Links
Sections 22-23 - Adapter Research and Development
Sections 24-28 - Project Vehicle Photo Galleries
NEW CONCEPT CAR!
We call it a Co-Kart (Short for a Corvette Go-Kart)
Below are several photos.
With the front adapters finally available, our Patented Modular Suspension Design opens up an entire new arena for the Do-It-Yourself builder.
It's an LS-3 powered, Corvette C5 suspended, all-aluminum, bolt-together frame, based on our suspension adapters - configured as a Type 3 style drivetrain.
The transmission is a 4L60E, modified my RPM Transmissions, from Anderson IL.
(More information on RPM Transmissions on our Manufacturer's Links page.)
The torque tube is eliminated and replaced with a Camaro-style bellhousing,
allowing a Corvette differential to be used in this high tech kit.
This particular vehicle has a 104.5" wheelbase - the same as the C5 Corvette, with the same front WMS (Wheel Mounting Surface) to WMS width as the C5 Corvette. The rear WMS to WMS has been stretched, giving an additional 3" width.
This could be built as a one or two passenger vehicle, with the second seat to the side or to the rear of the driver.
It weighs in at 1,369 pounds. With a completed engine and trans, a roll bar and harnesses, radiator and exhaust, we estimate the final weight
from 1,800 to 1,900 pounds!
The Suspension Adapter Basics
Types of Drivetrain Configurations
Technical & Installation Information
Products, Parts, & Pricing
Adapter Research & Development
We at Dobbertin Performance Innovations appreciate your business and highly recommend the addition of a Rear-View Camera with every Corvette Interface Independent Rear Suspension installation.
This is because the chance of a 'gearhead' lying on the ground behind your car to check it out, exponentially increases with this upgrade – and without the camera, there's a good chance that you might accidentally run over someone.
